• Country
• Japan

• Manufacturer / Brand
• Senator; Japan

• Year
• 1973 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 155865

• Number of Transistors
• 15

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Other, details in remarks or not known. / 9; 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Various materials

• from Radiomuseum.org

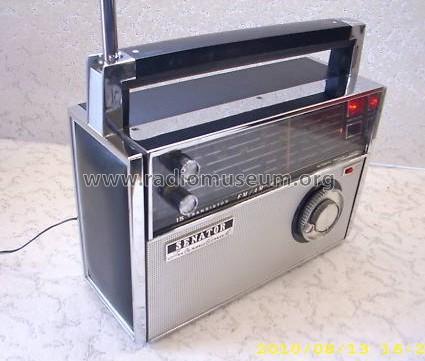

• Model: International 15 Transistor - Senator; Japan

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Senator International 15 Transistor FM/AM 6 Band;
  FM: 88 - 108 MHz,
  LW: 150 - 400 KHz, BC-AM-MW,
  SW1: 1.6 - 4.5 MHz,
  SW2: 4.5 - 12 MHz,
  SW3: 12 - 26 MHz,
  Featuring: tone control, AFC, hidden telescopic antenna inside the handle, fine tuning, tuning indicator lamp, illuminated scale, terminals for: 9 VDC, earphones, MPX, phono, made in Japan.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
