• Country
• United States of America (USA)

• Manufacturer / Brand
• Sencore; Sioux Falls (SD)

• Year
• 1960 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 334159

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 12AU7

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Sweep Circuit Trouble Shooter SS105 - Sencore; Sioux Falls SD

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 180 x 150 x 65 mm / 7.1 x 5.9 x 2.6 inch

• Notes

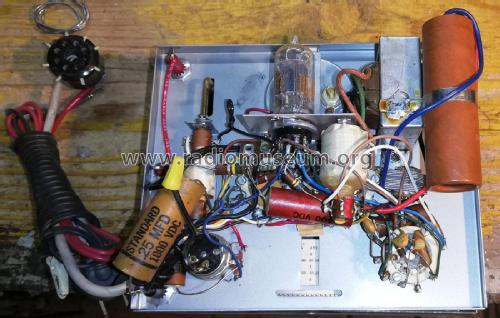

• • Apparatus for the control and verification of the sweep circuits of televisions. Controls both the oscillator circuit and horizontal power amplifier including the fly-back transformer and the yoke of the TV and the oscillator and the vertical final stage of the television.
  • Measures the cathode current of the horizontal tube.
  • Measures internal horizontal and vertical oscillators with 12AU7.



  • Apparecchio per il controllo e la verifica dei circuti di sweep dei televisori, controlla sia il circuito oscillatore e amplificatore di potenza orizzontale compreso il trasformatore fly-back ed il  giogo del tv sia  l'oscillatore e lo stadio finale verticale del televisore.
  • misura la corrente di catodo della valvola finale orizzontale.
  • oscillatori orizzontale e verticale interni con 12AU7.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Author
• Model page created by Giuseppe Feniello. See "Data change" for further contributors.
