• Country
• Germany

• Manufacturer / Brand
• Sennheiser Electronic (Labor W); Wennebostel

• Year
• 1979

• Category
• Microphone or Pick-up element

• Radiomuseum.org ID
• 127242

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Other Combination - see Notes

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Ansteck-Mikrofon MKE10 - Sennheiser Electronic Labor W;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 18 x 18 x 9 mm / 0.7 x 0.7 x 0.4 inch

• Notes

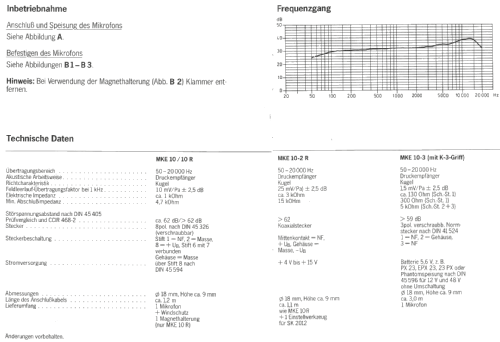

• Zum direkten Anschluß an den Sender SK 1010, Elektret-Kondensator-Mikrofon, Frequenzbereich 50 bis 20000Hz, max. Ausgangsimpedanz 4,7 kOhm.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
