• Country
• Germany

• Manufacturer / Brand
• Sennheiser Electronic (Labor W); Wennebostel

• Year
• 2017

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 321557

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Batteries / addl. power jack / BAP 800 LIpo: 3,7 / Ext.Power Supply: 5 Volt

• Loudspeaker
• - Is a Headphone or Earphone

• from Radiomuseum.org
• Model: Digital Wireless TV Headphones RS5000 - Sennheiser Electronic Labor W;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 102 x 265 x 23 mm / 4 x 10.4 x 0.9 inch

• Notes

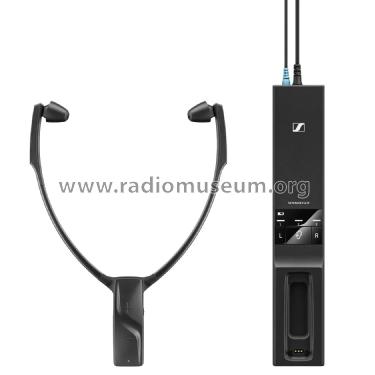

• Der digitale kabellose TV-Kopfhörer Sennheiser RS 5000 besteht aus dem Sendeteil TR5000 mit Auflademöglichkeit (Docking-Station) für den Empfänger/Hörer RR5000.

  • Trägerfrequenz: 2,4 bis 2,4835 GHz
  • Modulationsart: 8-FSK Digital
  • Rauschspannungsabstand: 85 dBA analog; >90 dBA digital
  • HF-Ausgangsleistung: max. 10 dBm
  • Audiolatenz: < 60 ms
  • Reichweite: bis zu 70 m

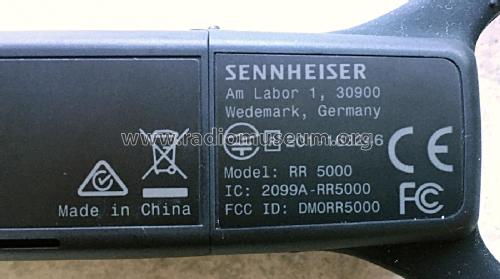

  Made in China.

• Net weight (2.2 lb = 1 kg)
• 0.061 kg / 0 lb 2.1 oz (0.134 lb)

• Price in first year of sale
• 249.00 Euro

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Ralf Rehbein. See "Data change" for further contributors.
