Kondensator-Mikrofon MKH 105

Sennheiser Electronic (Labor W); Wennebostel

Data
Forum
Pictures
Collections

  • Year
  • 1962–1964
  • Category
  • Microphone or Pick-up element
  • Radiomuseum.org ID
  • 82521

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 3
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Powered by external power supply or a main unit. / 12 Volt
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Kondensator-Mikrofon MKH 105 - Sennheiser Electronic Labor W;
  • Dimensions (WHD)
  • 20 x 126 x 0 mm / 0.8 x 5 x 0 inch
  • Notes

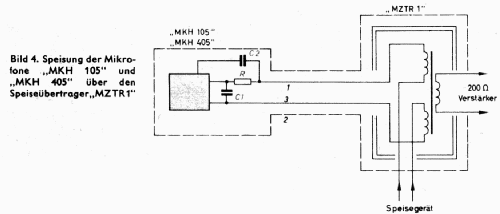

  • Kondensator-Mikrofon in HF-Schaltung (10-MHz-Oszillator, NF-Modulation/Demodulation nach Vergleich); Frequenzbereich: 40...20000 Hz; 2 mV/µBar; Kugelcharakteristik; NF-Impedanz 200 Ω symm, Tonaderspeisung 12 V, Betriebstrom 5 mA; Anschluss Kleintuchel T3262 (1= NF/+ UB, 2= Masse, 3: NF/- UB); Netzspeisegeräte MZN 5, 5/1 oder 6.
  • Net weight (2.2 lb = 1 kg)
  • 0.1 kg / 0 lb 3.5 oz (0.22 lb)
  • Price in first year of sale
  • 490.00 DM
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Mentioned in
  • Funk-Technik (FT) (13/1962, S. 443, 444 / Beschreibung, Daten, Schema)
