• Country
• Germany

• Manufacturer / Brand
• Sennheiser Electronic (Labor W); Wennebostel

• Year
• 1955 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 292787

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• ECH42

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

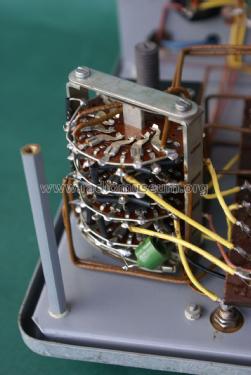

• Model: LC-Meßgerät XM3 - Sennheiser Electronic Labor W;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 260 x 190 x 90 mm / 10.2 x 7.5 x 3.5 inch

• Notes

• LC-Meßgerät 0pF bis 100nF in vier Bereichen und 0 bis 3500µH in drei Bereichen. Arbeitsfrequenz 100 bis 173 KHz

• Net weight (2.2 lb = 1 kg)
• 3.650 kg / 8 lb 0.6 oz (8.04 lb)

• Author
• Model page created by Manfred Rauschen. See "Data change" for further contributors.
