• Country
• Germany

• Manufacturer / Brand
• Sennheiser Electronic (Labor W); Wennebostel

• Year
• 1970 ??

• Category
• Microphone or Pick-up element

• Radiomuseum.org ID
• 71362

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

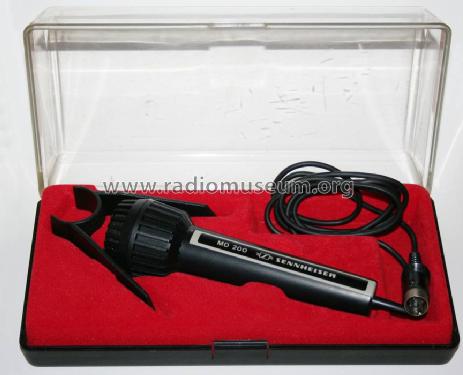

• Model: MD200 - Sennheiser Electronic Labor W;

• Dimensions (WHD)
• 24 x 24 x 160 mm / 0.9 x 0.9 x 6.3 inch

• Notes
• Dynamisches Mikrofon, Kugelcharakteristik, für Amateuraufnahmen. Übertragungsbereich 60 bis 13500 Hz. Empfindlichkeit 2,5 mV/Pa. Anschlußkabel 1,5 m mit Klinkenstecker 6,3 mm oder DIN 3pol.

• Net weight (2.2 lb = 1 kg)
• 0.1 kg / 0 lb 3.5 oz (0.22 lb)

• Price in first year of sale
• 30.00 DM

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Werner Raacke. See "Data change" for further contributors.
