- Country
- United States of America (USA)
- Manufacturer / Brand
- Sentinel Radio Corp., Evanston, Illinois
- Year
- 1934 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 57363

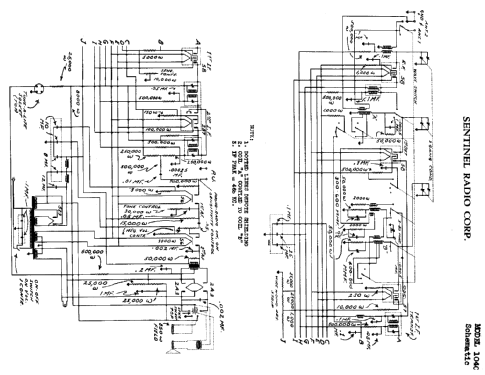

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz; 3 AF stage(s)
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 1040 - Sentinel Radio Corp., Evanston
- Notes
- Band1 (24-9.8MHz) Band2 (9.8-4MHz) Band3 (4-1.5MHz) Band4 (1700-540KHz)
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 5 = ca. 1934 and before
