• Country
• United States of America (USA)

• Manufacturer / Brand
• Sentinel Radio Corp., Evanston, Illinois

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 57409

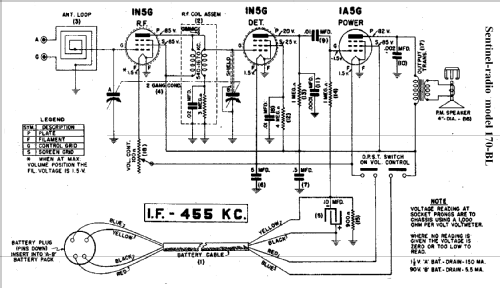

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 1N5G 1N5G 1A5G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 90V / 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

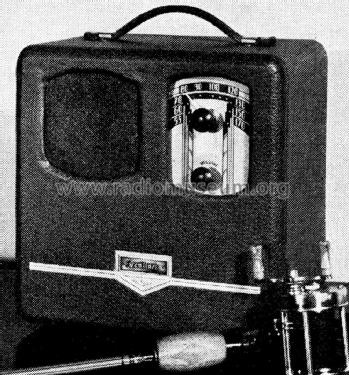

• Model: 170-BL - Sentinel Radio Corp., Evanston

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 225 x 240 x 170 mm / 8.9 x 9.4 x 6.7 inch

• Notes

• 90V= B bat 1.5V= A bat.14.95

• Price in first year of sale
• 14.95 $

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 12 = ca. 1941 and before

• Literature/Schematics (1)

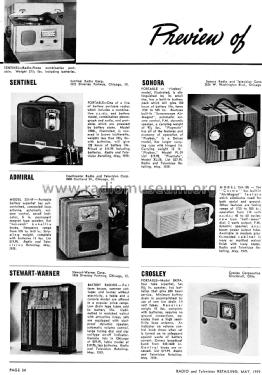

• Radio Retailing (Radio & Television R.) (May 1939 page 34)
