• Country
• United States of America (USA)

• Manufacturer / Brand
• Sentinel Radio Corp., Evanston, Illinois

• Year
• 1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 57412

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8GT 6K7GT 6Q7 25L6GT 25Z6GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Catalin (a brand name for a thermosetting polymer popular in the 1930s and 1940s - a phenol formaldehyde resin - like Bakelite, but a two-stage process with a lot of work afterwards).

• from Radiomuseum.org

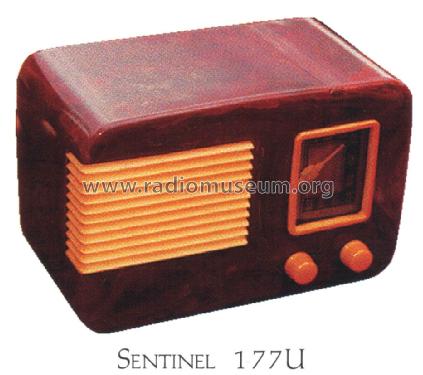

• Model: 177 U - Sentinel Radio Corp., Evanston

• Shape
• Tablemodel, with any shape - general.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Mentioned in
• Machine Age to Jet Age II (page 41.)
