• Country
• United States of America (USA)

• Manufacturer / Brand
• Sentinel Radio Corp., Evanston, Illinois

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 57414

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1A7G 1N5G 1H5G 1Q5G 35Z4GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• from Radiomuseum.org
• Model: 180XL - Sentinel Radio Corp., Evanston

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 12 x 11.25 x 8 inch / 305 x 286 x 203 mm

• Notes

• Battery's = A-B battery pack line = AC or DC. Tunes 540 to 1730 k.c.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

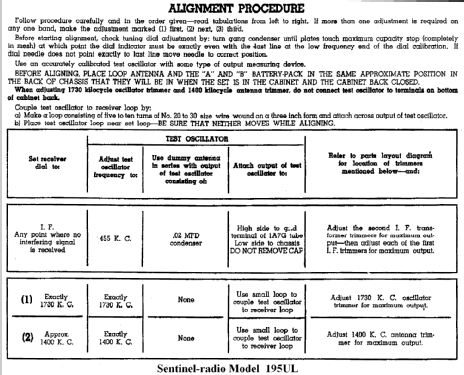

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Literature/Schematics (3)
• Shown for Season 1939/40 for 1940 in Sentinel Folder No. 120.
