• Country
• United States of America (USA)

• Manufacturer / Brand
• Sentinel Radio Corp., Evanston, Illinois

• Year
• 1940 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 57419

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

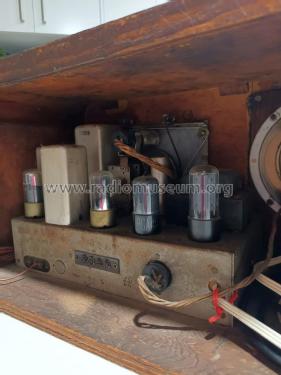

• 6K8 6SK7 6SQ7 6K6G 6U5 5Y4G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115-250 Volt

• Loudspeaker

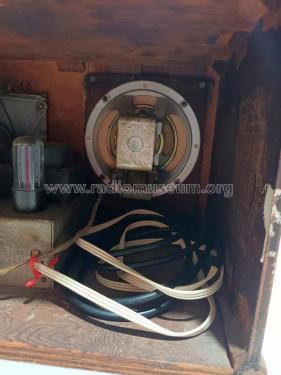

• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Material

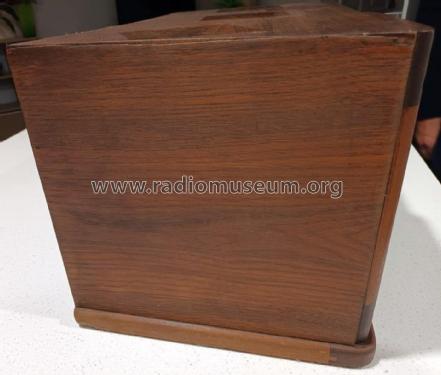

• Wooden case

• from Radiomuseum.org
• Model: 185AE - Sentinel Radio Corp., Evanston

• Shape
• Tablemodel, low profile (big size).

• Notes

• 6-tube (including magic eye) superhet all-wave table chest model.

  Speaker = 6 or 10 inch BC (540-1730KHz) SW1 (2.3-7.5MHz) SW2 (7.5-24MHz)

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before
