- Country
- United States of America (USA)
- Manufacturer / Brand
- Sentinel Radio Corp., Evanston, Illinois
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 57430
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 115; 220; 110-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 198 A - Sentinel Radio Corp., Evanston
- Shape
- Tablemodel, with any shape - general.
- Notes
- BC (540-1600kHz) and SW (5.7-18.3MHz) bands. Built-in loop antenna for BC band. Push-pull audio amplifier. Some models with additional 6AB5 tuning eye. 6 or 10 inch speaker.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition

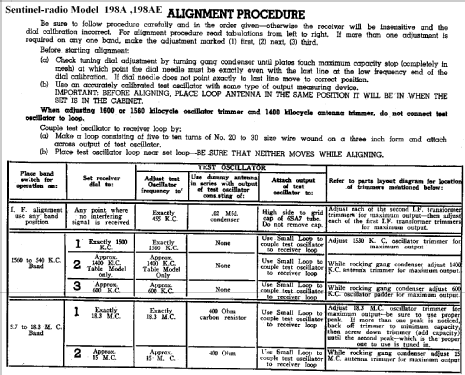

- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
