• Country
• United States of America (USA)

• Manufacturer / Brand
• Sentinel Radio Corp., Evanston, Illinois

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 57452

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• from Radiomuseum.org
• Model: 1U293CT - Sentinel Radio Corp., Evanston

• Notes
• speaker =4x6 inch

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 16 = ca. 1948 and before

• Literature/Schematics (4)

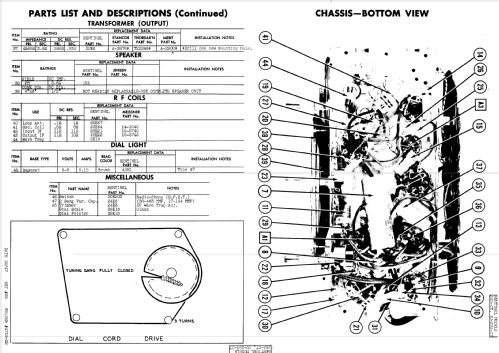

• Photofact Folder, Howard W. SAMS (Set 29, Date 12/47, Folder 4719-22)
