- Country
- United States of America (USA)
- Manufacturer / Brand
- Sentinel Radio Corp., Evanston, Illinois
- Year
- 1946 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 57453
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4 inch = 10.2 cm
- from Radiomuseum.org
- Model: 1U293I - Sentinel Radio Corp., Evanston
- Notes
- Built-in loop antenna. 4 by 6 inch speaker. Sams photofact set 1 folder 461-14 date 6-46 features the Sentinel models 293I, 293T, 293W, 1U-293I, 1U-293T and 1U-293W as the same schematic.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Literature/Schematics (1)

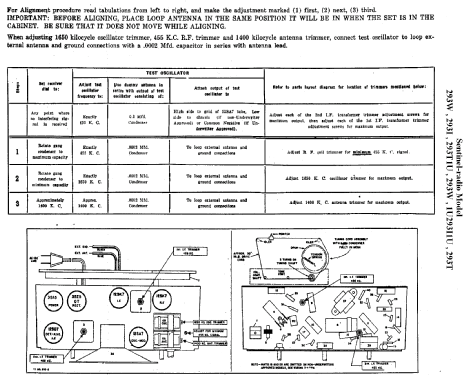

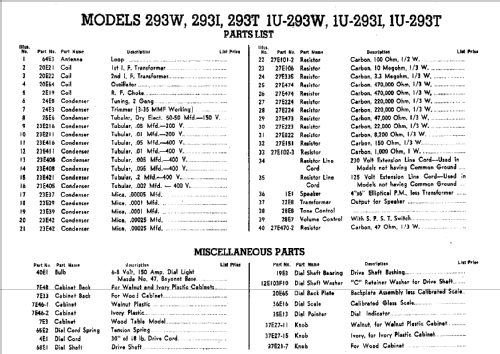

- Photofact Folder, Howard W. SAMS (Set 1 folder 461-14 date 6-46)
