- Country
- United States of America (USA)
- Manufacturer / Brand
- Sentinel Radio Corp., Evanston, Illinois
- Year
- 1950 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 57473
Beitman
Rider
Service-Unterlagen

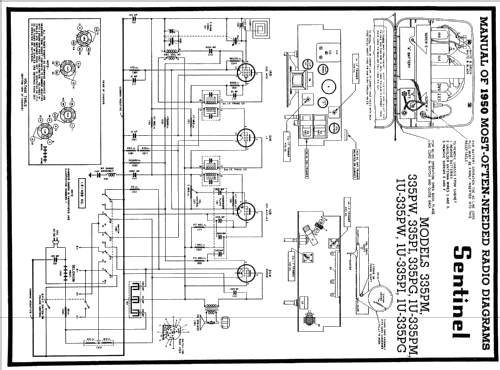

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / 110-120 AC;DC;(67.5; 4.5) Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 1U335PG - Sentinel Radio Corp., Evanston
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
- Selenium Rectifier
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 21, Copyright 1950
- Literature/Schematics (1)
- Beitman Radio Diagrams, Vol. 10, 1950
