- Country
- United States of America (USA)
- Manufacturer / Brand
- Sentinel Radio Corp., Evanston, Illinois
- Year
- 1952 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 353061

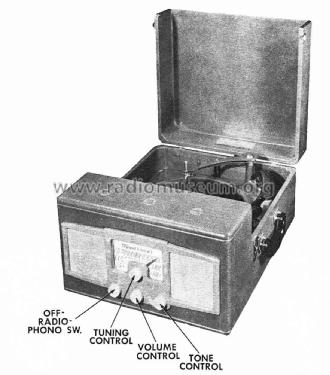

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification; ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.75 inch = 12.1 cm
- Material
- Various materials
- from Radiomuseum.org
- Model: 1U342-K - Sentinel Radio Corp., Evanston
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Sentinel model 1U342-K is an AC operated radio-phono combination superheterodyne receiver with loop antenna.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 155, folder 14, dated 1-52)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
- Other Models
-
Here you find 710 models, 350 with images and 602 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Sentinel Radio Corp., Evanston, Illinois
