• Country
• United States of America (USA)

• Manufacturer / Brand
• Sentinel Radio Corp., Evanston, Illinois

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 57482

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1R5 1U4 1U5 3V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 117 AC/DC; Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 1U345P - Sentinel Radio Corp., Evanston

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Selenium Rectifier

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 23 (last), covering up to 1954

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)

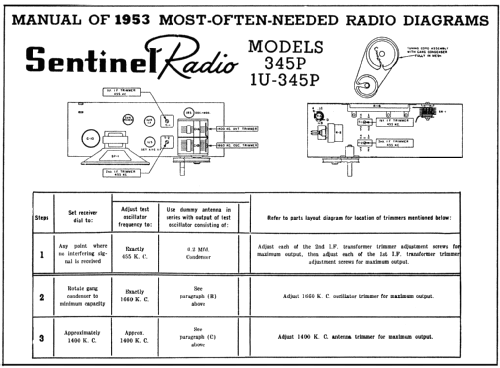

• Beitman Radio Diagrams, Vol. 13, 1953
