- Country
- United States of America (USA)
- Manufacturer / Brand
- Sentinel Radio Corp., Evanston, Illinois
- Year
- 1955 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 331754
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Valves / Tubes
- 3BC5 5J6 3CB6 3CB6 5AV8 6AW8 5AV8 3BN6 12L6GT 12BH7A 6SN7GTA 12CU6 12AX4GT 1X2B 17AVP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: 1U-1011B - Sentinel Radio Corp., Evanston
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Sentinel model 1U-1011B is a 17” b/w TV with US standard VHF tuner channels 2 thru 13.

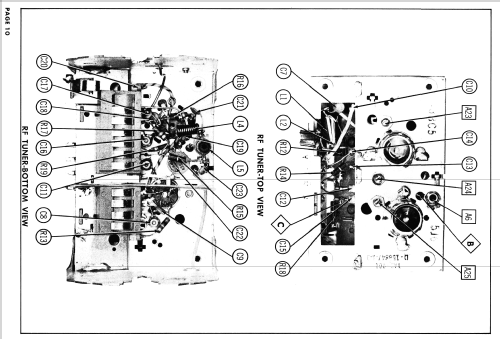

Equipped with VHF tuner B158847-1-3 and picture tube 17AVP4.
- Literature/Schematics (1)

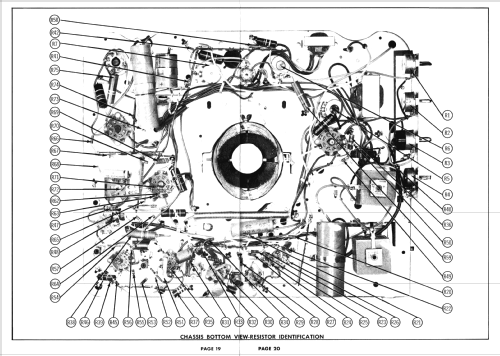

- Photofact Folder, Howard W. SAMS (Set 299 Folder 8 dated 12-55)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
