• Country
• United States of America (USA)

• Manufacturer / Brand
• Sentinel Radio Corp., Evanston, Illinois

• Year
• 1947 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 57466

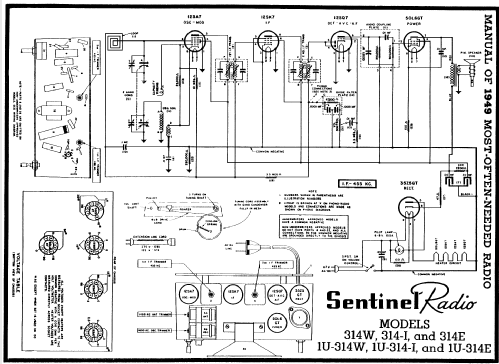

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: IU-314I - Sentinel Radio Corp., Evanston

• Notes
• Color: ivory
  Extension Line Cord 230V-(28) Extension Line Cord 125V-123

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 19 = 1949 and before

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 09, 1949

• Literature/Schematics (4)
• Photofact Folder, Howard W. SAMS (Set 38, Date 4/48, Folder 488-21)
