• Country
• United States of America (USA)

• Manufacturer / Brand
• Sentinel Radio Corp., Evanston, Illinois

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82085

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 60 cycles, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

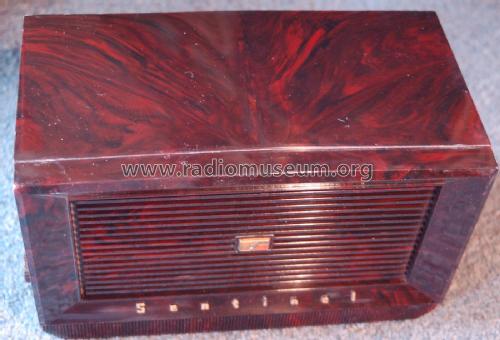

• Model: 1U-363 - Sentinel Radio Corp., Evanston

• Shape
• Tablemodel, with any shape - general.

• Notes

• Sentinel Model 1U-363 is an AC-DC Operated AM Superheterodyne Receiver .

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 16, 1956

• Mentioned in

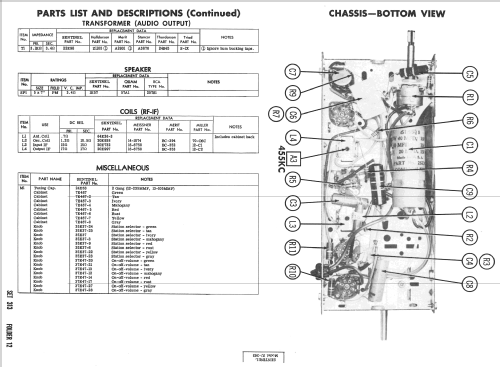

• Photofact Folder, Howard W. SAMS (Set 313 Folder 12 dated 4-1956)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
