• Country
• United States of America (USA)

• Manufacturer / Brand
• Sentinel Radio Corp., Evanston, Illinois

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82087

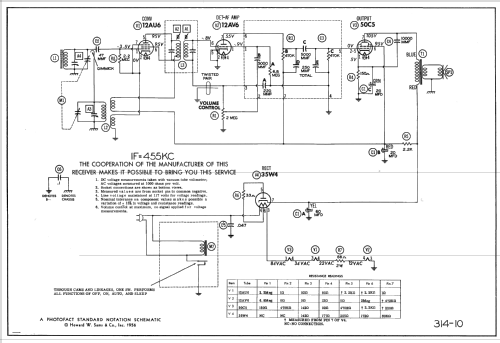

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12AU6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 1U-364 - Sentinel Radio Corp., Evanston

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

• AC Operated AM Superheterodyne Receiver With Electric Clock.

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 16, 1956

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 314 Folder 10 dated 4-56)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
