- Country
- United States of America (USA)
- Manufacturer / Brand
- Sentinel Radio Corp., Evanston, Illinois
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 263667
picture from service manual

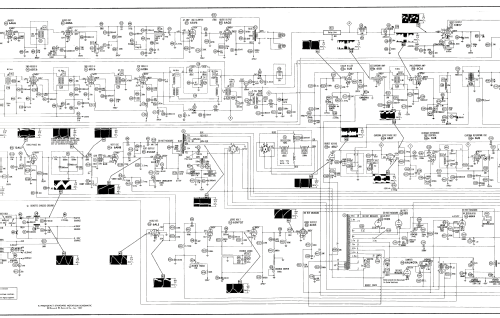

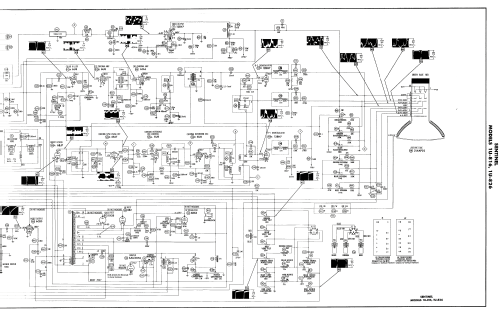

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 28
- Valves / Tubes
- 6BZ7 6U8 6DC6 6DC6 6DC6 6CB6 12BY7 6AN8 6AU6 6AU6 6BN6 6AV6 6AQ5 12AU7 6V6GT 6AL5 6SN7GT 6CB5 6AU4GTA 3B2 1X2B 6BK4 6U8 6CL6 6BJ7 6U8 12BH7 21AXP22
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1U-816 - Sentinel Radio Corp., Evanston
- Shape
- Console with any shape - in general
- Notes
-
The Sentinel model 1U-816 is an 21" color TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF. This model is equipped with a picture tube 21AXP22.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 344 Folder 13 date 1 - 57)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
- Other Models
-
Here you find 710 models, 350 with images and 602 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Sentinel Radio Corp., Evanston, Illinois
