200-X or 200-XC
Sentinel Radio Corp., Evanston, Illinois
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sentinel Radio Corp., Evanston, Illinois
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 57484

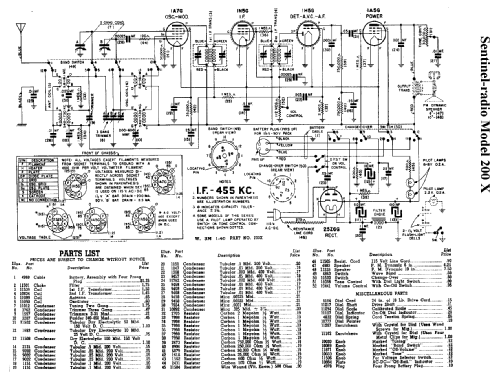

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Line / Batteries (any type) / 110V/90V/1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 200-X or 200-XC - Sentinel Radio Corp., Evanston
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 23 x 38 x 12 inch / 584 x 965 x 305 mm
- Notes
-
BC (540 - 1730 kHz) and SW (5.8 - 18.1 MHz) bands. 6 or 10 inch speaker. Line supply =AC or DC. See also Sentinel model 200-XT.
- External source of data
- Ernst Erb
- Source of data
- Pre-War Consoles
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Literature/Schematics (3)
- Shown for Season 1939/40 for 1940 in Sentinel Folder No. 120.
