206AE

Sentinel Radio Corp., Evanston, Illinois

Data
Forum
Pictures
Collections

  • Year
  • 1939/1940
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 57492

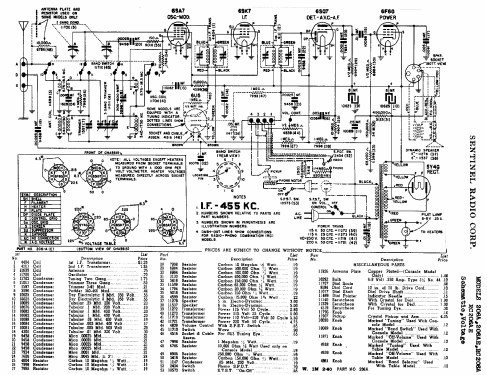

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / see text, normal is 50 cycles, 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 206AE - Sentinel Radio Corp., Evanston
  • Shape
  • Tablemodel, low profile (big size).
  • Notes

  • The Sentinel chassis 206-A have the same schematic but different cabinets. Assumptions for the suffixes: 206-A (not sure if this is only the chassis name, no cabinet, A probably for AC), 206-AT (T for table) and 206-ACT (C = console, T = tall) and 206-AE (E for magic eye).

    Tuning is broadcast 540 to 1730 kHz and short waves 5.7 to 18.3 MHz, automatic volume control (AVC). 3.5 Watt power output. The same line exists as 204-A chassis with the same cabinets (and more) but the chassis provides broadcast only  - see for instance 204-AE.
    * Models can have a different power transformer:  11272 (39) for 115 volts 50 cycles, 11273 (40) 115 volts 25 cycles, 11719 (41) 110 - 230 volts, 50 cycles or 11721 (42) for 220 volts, 50 cycles. Models -CB are "combinations" with phonograph. See 204ATE-CB, 204ACE-CB (and 198ACE-CB).

  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 11 = ca. 1940 and before
