- Country
- United States of America (USA)
- Manufacturer / Brand
- Sentinel Radio Corp., Evanston, Illinois
- Year
- 1941 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 57515

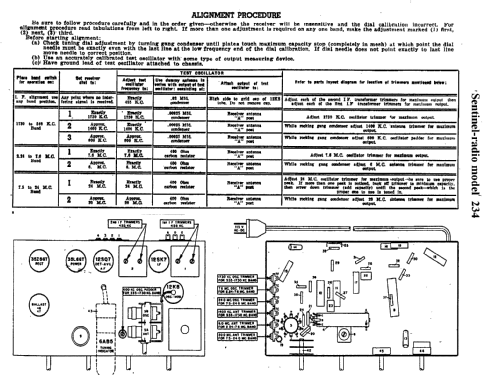

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- Semiconductors
- 11222
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 100-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 234 - Sentinel Radio Corp., Evanston
- Notes
-
Note that the schematic shows a "BALLAST" tube as "(46)" or "(47)". These are reference numbers, most likely on the parts list not shown here, and not actual tube numbers as noted in the "NOTES: 1. NUMBERS SHOWN IN PARENTHESIS ARE ILLUSTRATION NUMBERS."
The "VOLTAGE RATING" notes at the bottom of the schematic list the two (BALLAST) tubes as:
- "11222 line voltage regulator tube" for 100-120 VAC, 50-60 Hz, or
- "11223 line voltage regulator tube" for 210-240 VAC, 50-60 Hz.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 12 = ca. 1941 and before
- Other Models
-
Here you find 710 models, 350 with images and 602 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Sentinel Radio Corp., Evanston, Illinois
