• Country
• United States of America (USA)

• Manufacturer / Brand
• Sentinel Radio Corp., Evanston, Illinois

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 57543

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1A7GT 1N5GT 1H5GT 1A5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries / 90 & 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

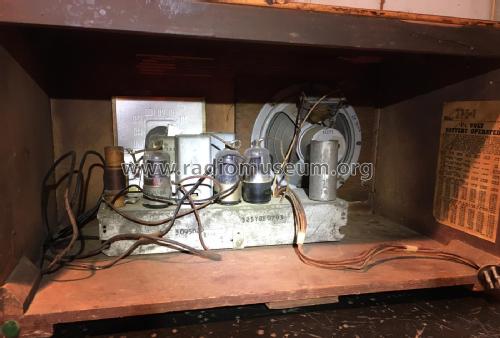

• Model: 275T Ch= 275 - Sentinel Radio Corp., Evanston

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 16.5 x 10 x 10 inch / 419 x 254 x 254 mm

• Notes
• Schematic: Speaker = 5,6 or 10 inch - most probably the 10 inch speaker is for a console.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before
