• Country
• United States of America (USA)

• Manufacturer / Brand
• Sentinel Radio Corp., Evanston, Illinois

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 57557

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12SA7 12SK7 12SQ7 35A5 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

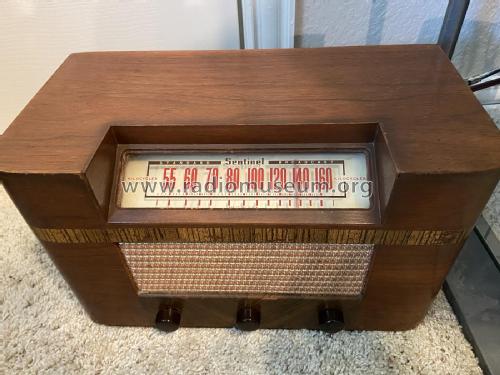

• Model: 293 T - Sentinel Radio Corp., Evanston

• Shape
• Tablemodel, with any shape - general.

• Notes
• Built-in loop antenna. 4 by 6 inch speaker. Sams photofact set 1 folder 461-14 date 6-46 features the Sentinel models 293I, 293T, 293W, 1U-293I, 1U-293T and 1U-293W as the same schematic.

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in
• Radio Retailing (Radio & Television R.) (March 1946 page 38.)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 1 folder 461-14 date 6-46)

• Other Models

• Here you find 710 models, 350 with images and 602 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
