- Country
- United States of America (USA)
- Manufacturer / Brand
- Sentinel Radio Corp., Evanston, Illinois
- Year
- 1946–1948
![perfect model](/img/sternRot.gif)
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 57561

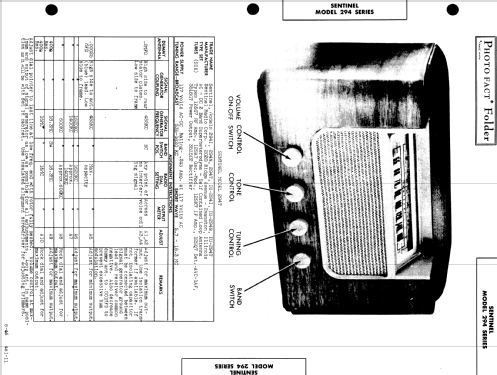

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 294 T - Sentinel Radio Corp., Evanston
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 380 x 240 x 180 mm / 15 x 9.4 x 7.1 inch
- Notes
- BC (538-1620kHz) and SW (5.7-18.3MHz) bands. Built-in loop antenna for BC band. 4 x 6 inch speaker. Sams photofact, set 1, folder 461-11, date 6-46, features the Sentinel models 294I, 194N, 294T, 1U-294I, 1U-294N and 1U-294T as the same schematic. Ad in the "Saturday Evening Post, Mai 1, 1948: The models are 316 PM, 286 PR, 296 M, probably 314-I plus yet unknown model with 4 knobs, probably the model 294 T.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Mentioned in
- Radio Retailing (Radio & Television R.) (March 1946 page 38.)
- Literature/Schematics (1)

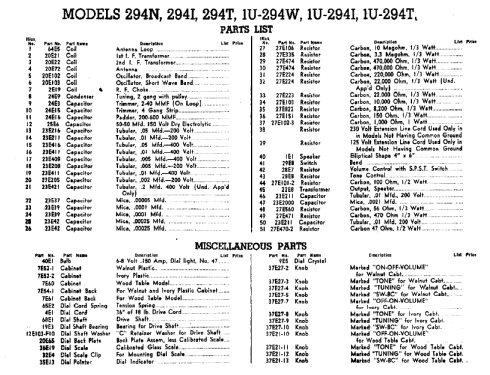

- Photofact Folder, Howard W. SAMS (Set 1 folder 461-11 date 6-46)
