- Country
- United States of America (USA)
- Manufacturer / Brand
- Sentinel Radio Corp., Evanston, Illinois
- Year
- 1947/1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 227624
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Material
- Wooden case
- from Radiomuseum.org

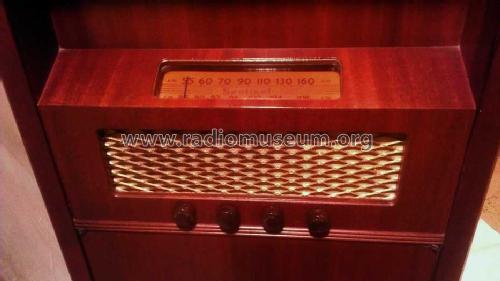

- Model: 302-CTM - Sentinel Radio Corp., Evanston
- Shape
- Console with Push Buttons.
- Dimensions (WHD)
- 34 x 20.5 x 16.75 inch / 864 x 521 x 425 mm
- Notes
-
Range: 535 to 1750 k.c. and 87,5 to 109 mc. The Sentinel model 302-CTB is in Blond, the model 302-CTM in Mahogany in standard AM broadcasts. Also available for standard broadcasts: the Sentinel model 313-CTB in Blond and the model 313-CTM in Mahogany.
A Sentinel Folder for season 1947/48 shows the following models together: 285, 286, 289, 296, 298, 302, 305, 309, 313, 314, 315 and 316 in different colors, for instant suffix "I" for Ivory and "W" for Walnut.
Record Changer: General Instrument model #205
- Literature/Schematics (3)
- Shown for Season 1947/48 in a Sentinel Folder.
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
