- Country
- United States of America (USA)
- Manufacturer / Brand
- Sentinel Radio Corp., Evanston, Illinois
- Year
- 1947/1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 57565

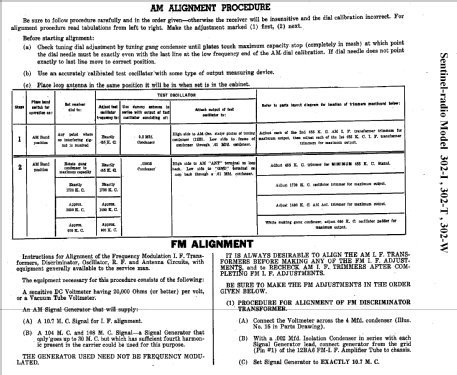

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: 302-T - Sentinel Radio Corp., Evanston
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 15 x 9.375 x 7.125 inch / 381 x 238 x 181 mm
- Notes
-
Built in loop antenna for BC BC(535-1730KHz) FM(87,5-109MHz).
Selenium rectifier.
4" x 6" PM elliptical speaker. A Sentinel Folder for season 1947/48 shows the following models together: 285, 286, 289, 296, 298, 302, 305, 309, 313, 314, 315 and 316 in different colors, for instant suffix "I" for Ivory and "W" for Walnut.
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 17 = 1948 and before
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 33, Folder 483-23)
- Literature/Schematics (2)
- Shown for Season 1947/48 in a Sentinel Folder.
