- Country
- United States of America (USA)
- Manufacturer / Brand
- Sentinel Radio Corp., Evanston, Illinois
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 191929

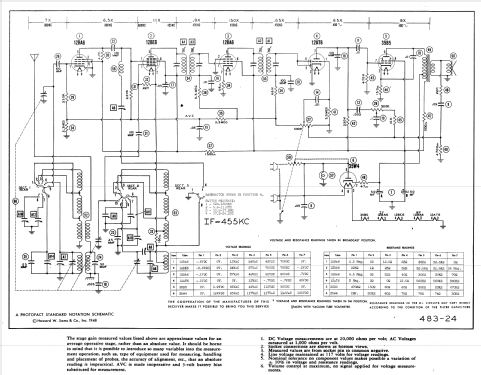

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)
- Power type and voltage
- AC/DC-set / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 305-W3 - Sentinel Radio Corp., Evanston
- Shape
- Tablemodel, with any shape - general.
- Literature/Schematics (4)
- Photofact Folder, Howard W. SAMS (Set 33, Date 2/48, Folder 483-24)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
