- Country
- United States of America (USA)
- Manufacturer / Brand
- Sentinel Radio Corp., Evanston, Illinois
- Year
- 1947/1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 57581

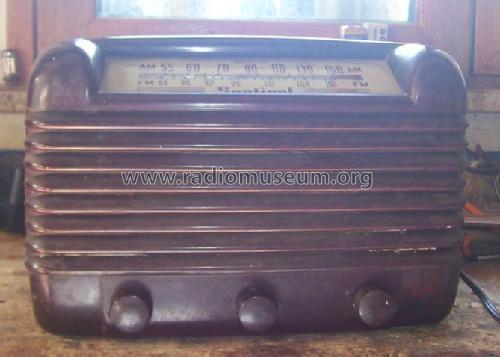

Vista frontale
Vista prospettica
Vista interna con antemma a quadro
Vista dal retro
Particolare della scala parlante
SAMS Photofact
RECONSTRUCTED LABEL
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 315-W - Sentinel Radio Corp., Evanston
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 11.5 x 7.625 x 6.25 inch / 292 x 194 x 159 mm
- Notes
-
Color= Walnut. Range: 535 - 1650 k.c. 87.5 - 108 MC. A Sentinel Folder for season 1947/48 shows the following models together: 285, 286, 289, 296, 298, 302, 305, 309, 313, 314, 315 and 316 in different colors, for instant suffix "I" for Ivory and "W" for Walnut.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 20 covering 1950
- Literature/Schematics (2)
- Shown for Season 1947/48 in a Sentinel Folder.
- Literature/Schematics (4)
- Photofact Folder, Howard W. SAMS (Set 40, Date 5/48, Folder 4810-19)
