- Country
- United States of America (USA)
- Manufacturer / Brand
- Sentinel Radio Corp., Evanston, Illinois
- Year
- 1947/1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 227617

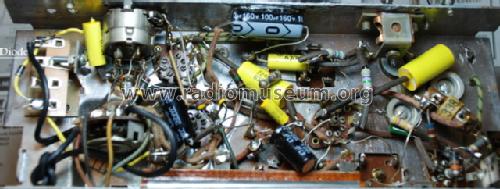

American Radio design Greg Mercurio
American Radio design Greg Mercurio
American Radio design Greg Mercurio
American Radio design Greg Mercurio
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

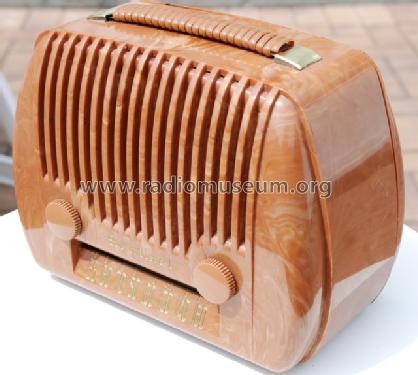

- Model: 316 P - Sentinel Radio Corp., Evanston
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 8.25 x 6.75 x 5 inch / 210 x 171 x 127 mm
- Notes
-
A Sentinel Folder for season 1947/48 shows the following models together: 285, 286, 289, 296, 298, 302, 305, 309, 313, 314, 315 and 316 in different colors, for instant suffix "I" for Ivory and "W" for Walnut.
- Literature/Schematics (3)
- Shown for Season 1947/48 in a Sentinel Folder.
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
