• Country
• United States of America (USA)

• Manufacturer / Brand
• Sentinel Radio Corp., Evanston, Illinois

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 57597

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50B5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm

• Material
• Bakelite case

• from Radiomuseum.org

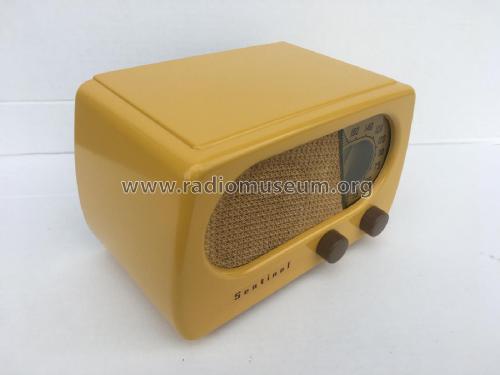

• Model: 331-W - Sentinel Radio Corp., Evanston

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• Color=Walnut

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 20 covering 1950

• Mentioned in
• Machine Age to Jet Age II (page 251.)

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 10, 1950
