• Country
• United States of America (USA)

• Manufacturer / Brand
• Sentinel Radio Corp., Evanston, Illinois

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 88917

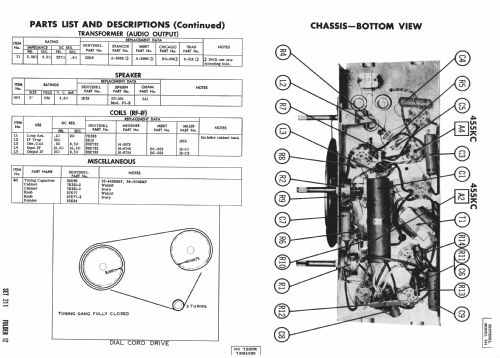

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BA6 12BE6 12BA6 12AV6 35C5 35W4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 344 - Sentinel Radio Corp., Evanston

• Shape
• Tablemodel, with any shape - general.

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 13, 1953

• Author
• Model page created by Walter Wiesmüller † May 2012. See "Data change" for further contributors.

• Other Models

• Here you find 710 models, 350 with images and 602 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sentinel Radio Corp., Evanston, Illinois
