- Country
- United States of America (USA)
- Manufacturer / Brand
- Sentinel Radio Corp., Evanston, Illinois
- Year
- 1950 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 341385
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6AG5 or 6CB6 6AG5 or 6CB6 6C4 6AG5 6AG5 6AG5 6AL5 6AH6 6AU6 6T8 6K6GT 12AU7 6K6GT 6S4 6AL5 6SN7GT 6CD6G 6W4GT 1B3GT 5U4G 16GP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 416 - Sentinel Radio Corp., Evanston
- Shape
- Console with any shape - in general
- Notes
-
Sentinel model 416 is a 16” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with a VHF- tuner 20E519 and picture tube 16GP4.
- Literature/Schematics (1)

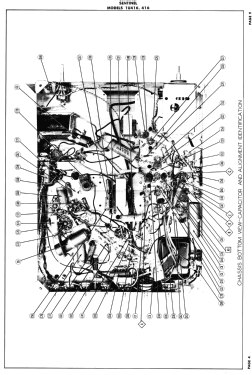

- Photofact Folder, Howard W. SAMS (Set 117, Folder 12 dated 12-50)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
- Other Models
-
Here you find 710 models, 350 with images and 602 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Sentinel Radio Corp., Evanston, Illinois
