- Country
- United States of America (USA)
- Manufacturer / Brand
- Sentinel Radio Corp., Evanston, Illinois
- Year
- 1939 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 57689

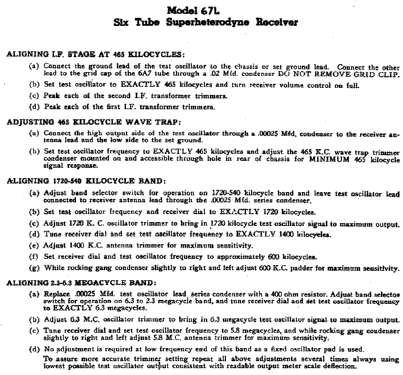

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Direct Current supply (DC) / 32 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 67L - Sentinel Radio Corp., Evanston
- Notes
- Speaker = 6 or 8 inch. Farm radio.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 10 = 1939 and before
