- Country
- United States of America (USA)
- Manufacturer / Brand
- Sentinel Radio Corp., Evanston, Illinois
- Year
- 1957 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 260142

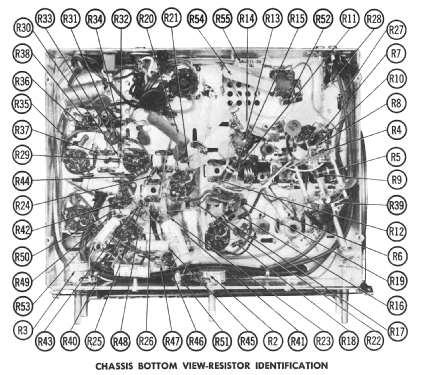

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: CR-739 - Sentinel Radio Corp., Evanston
- Shape
- Chassis only or for «building in»
- Notes
-
Sentinel Chassis CR-739 is an AC Operated FM-AM Receiver.Push-pull af output.
- Mentioned in

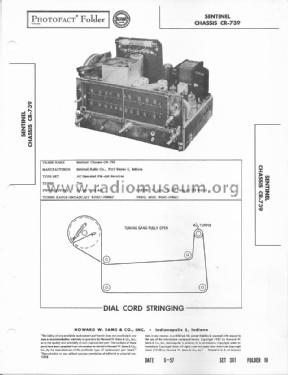

- Photofact Folder, Howard W. SAMS (Folder 361-10, June, 1957)
- Author
- Model page created by Jose Luis Espinosa Gonzalez. See "Data change" for further contributors.
