• Country
• United States of America (USA)

• Manufacturer / Brand
• Sentinel Radio Corp., Evanston, Illinois

• Year
• 1957 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 312673

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 2BN4 5CG8 3BZ6 3BZ6 3CB6 12BY7A 5AN8 5U8 3BN6 12L6GT 6SN7GTB 6CM7 6SN7GTB 12DQ6 12AX4GTA 1B3GT 21ATP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Ch= U72-01AA - Sentinel Radio Corp., Evanston

• Shape
• Chassis only or for «building in»

• Notes

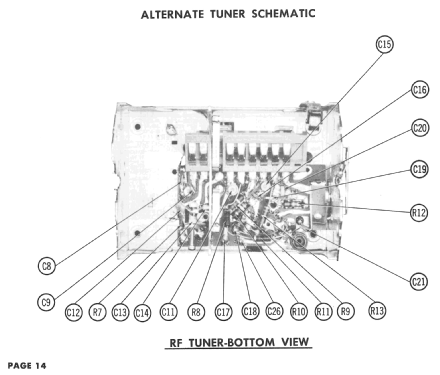

• Sentinel Chassis U72-01AA (72 Series) is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with VHF tuner 20E313-2 and picture tube 21ATP4.



• Literature/Schematics (1)

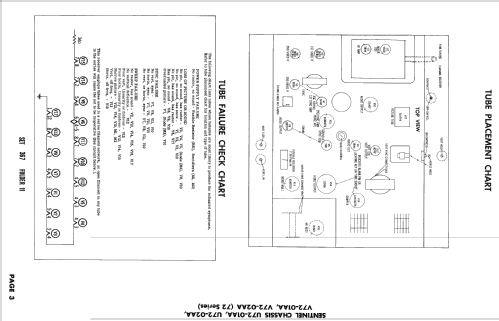

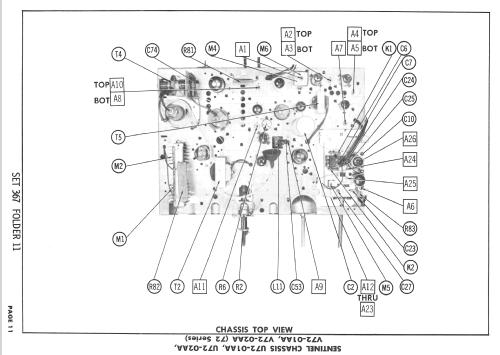

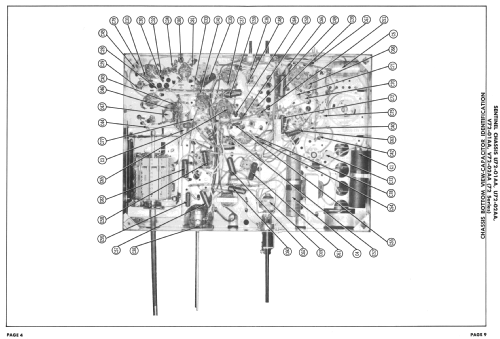

• Photofact Folder, Howard W. SAMS (Set 367 Folder 11 dated 8-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
