Ch= U74-02AA
Sentinel Radio Corp., Evanston, Illinois
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sentinel Radio Corp., Evanston, Illinois
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 267921

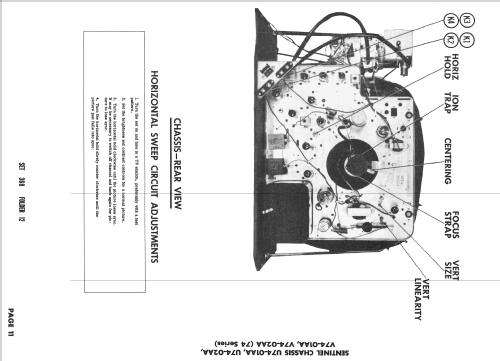

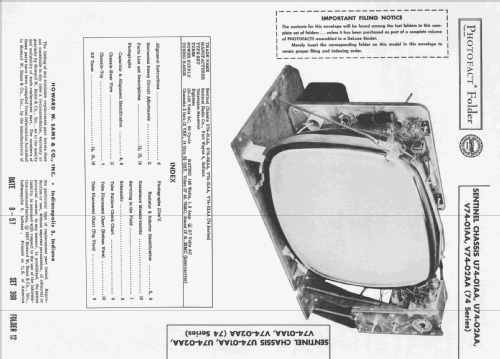

Picture from service manual.

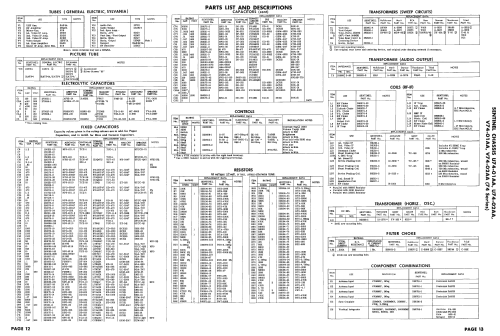

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- 4BQ7A 5U8 2AF4A 3BZ6 3BZ6 3CB6 12BY7A 5AN8 5U8 3DT6 12L6GT 6CG7 6CG7 12DQ6 or 12DQ6A 1B3GT 12AX4GT 6CM7 24YP4 or 21ATP4
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Ch= U74-02AA - Sentinel Radio Corp., Evanston
- Shape
- Chassis only or for «building in»
- Notes
-
Sentinel Chassis U74-02AA is a 21 or 24" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with VHF-tuner 700558-2, UHF tuner 700556-2 and picture tube 24YP4 or 21ATP4
