Ch= U75-01AA

• Country
• United States of America (USA)

• Manufacturer / Brand
• Sentinel Radio Corp., Evanston, Illinois

• Year
• 1957 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 312549

• Picture

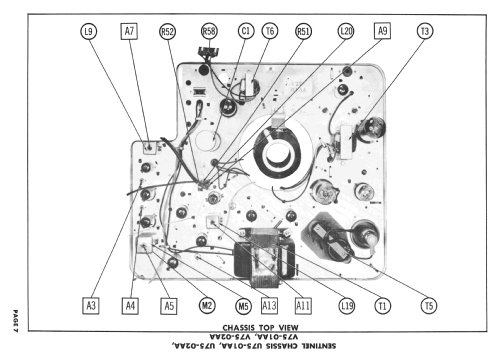

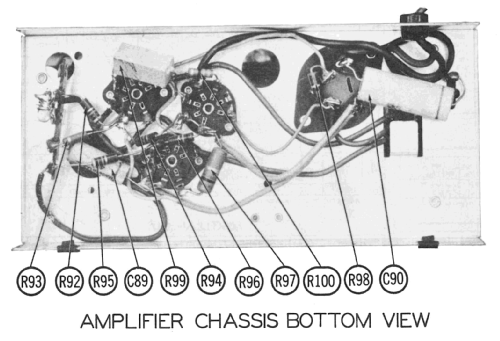

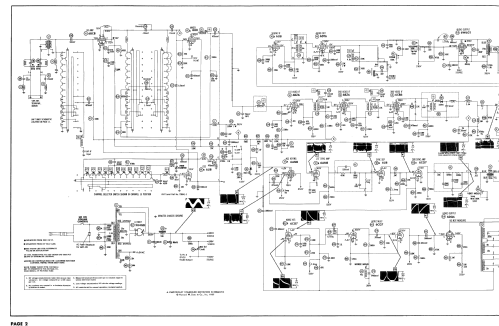

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• 6AF4A 6BC8 6U8 6BZ6 6BZ6 6CB6 12BY7A 6AN8 6U8 6DT6 6W6GT 6CG7 6CM7 6CG7 6DQ6 6AX4GT 1B3GT 5U4GB 21ATP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Ch= U75-01AA - Sentinel Radio Corp., Evanston

• Shape
• Chassis only or for «building in»

• Notes

• Sentinel Chassis model U75-01AA is a 21" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with VHF- tuner 700541-3, UHF tuner 700530 and picture tube 21ATP4A

  .

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 366 Folder 10 dated 8-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
