• Country
• United States of America (USA)

• Manufacturer / Brand
• Sentinel Radio Corp., Evanston, Illinois

• Year
• 1940 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 197657

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1A7G 1N5G 1H5G 1A5G

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1.5 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

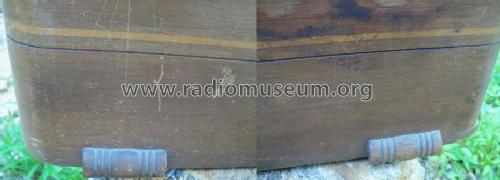

• Material
• Wooden case

• from Radiomuseum.org
• Model: 175BTW - Sentinel Radio Corp., Evanston

• Shape
• Tablemodel, with any shape - general.

• Notes

• See also model 175BT with the same chassis but different cabinet.  There also is reported to be a console model 175BCT.

• Mentioned in
• Collector's Guide to Antique Radios (7th Edition) (page 240)

• Literature/Schematics (1)
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Author
• Model page created by a member from A. See "Data change" for further contributors.
