Ch= V74-02AA

• Country
• United States of America (USA)

• Manufacturer / Brand
• Sentinel Radio Corp., Evanston, Illinois

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 267923

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• 4BQ7A 5U8 2AF4A 3BZ6 3BZ6 3CB6 12BY7A 5AN8 5U8 3DT6 12L6GT 6CG7 6CG7 12DQ6 or 12DQ6A 1B3GT 12AX4GT 6CM7 24YP4 or 21ATP4

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Ch= V74-02AA - Sentinel Radio Corp., Evanston

• Shape
• Chassis only or for «building in»

• Notes

• Sentinel Chassis V74-02AA is a 21 or 24" b/w TV with US standard VHF tuner channels 2 thru 13, and 14 thru 83 UHF. Equipped with VHF-tuner 700558-2, UHF tuner 700556-2 and picture tube 24YP4 or 21ATP4

• Mentioned in
• Photofact Folder, Howard W. SAMS (Set 345 Folder 19-S date 1 - 57)

• Literature/Schematics (1)

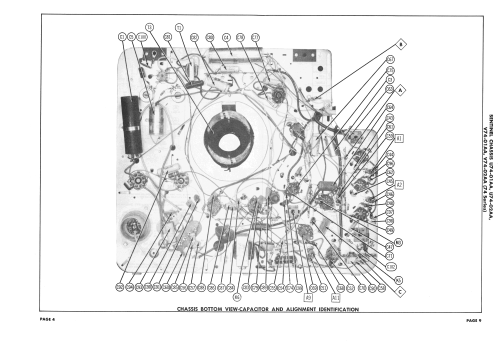

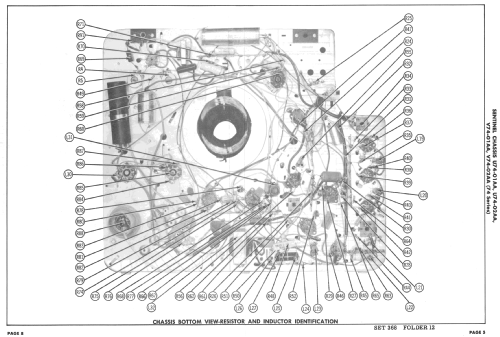

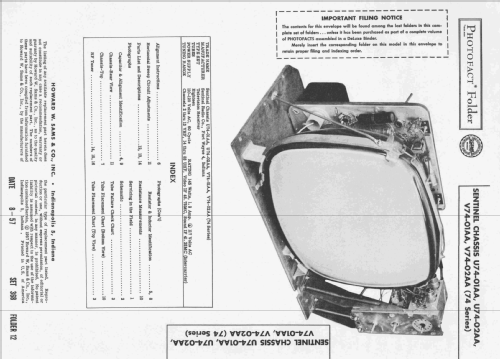

• Photofact Folder, Howard W. SAMS (Set 368 Folder 12 dated 8-57)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
