2500 Ch= 25

• Country
• United States of America (USA)

• Manufacturer / Brand
• Setchell Carlson, Inc.; St.Paul (MN)

• Year
• 1951 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 349859

• • Brand: Doraphone

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 26

• Valves / Tubes
• 6AG5 6J6 6AU6 6AU6 6AU6 6AU6 6AU6 6K6GT 6AU6 12BH7 6AU6 6AL5 6AV6 6V6GT 6C4 6V6GT 6AL5 12BH7 6BQ6GT 6W4GT 1X2 or 1X2A 5U4G 6BE6 6BA6 6C4 17BP4A

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 2500 Ch= 25 - Setchell Carlson, Inc.; St.

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Setchell Carlson model 2500 is a 21” b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 25, VHF tuner TV-276 and picture tube 17BP4A.



• Literature/Schematics (1)

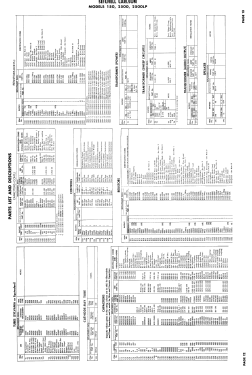

• Photofact Folder, Howard W. SAMS (Set 144, folder 9, dated 9-51)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
