583 Ch= 158R
Setchell Carlson, Inc.; St.Paul (MN)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Setchell Carlson, Inc.; St.Paul (MN)
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 325390
-
- Brand: Doraphone

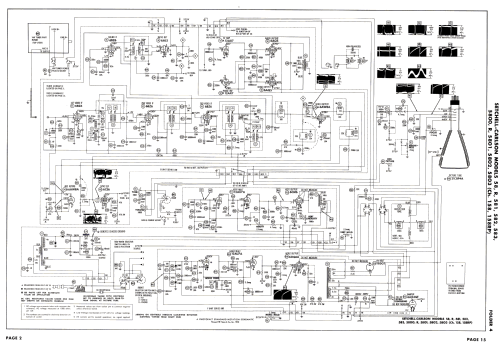

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- 6BC8 6CL8 6BZ6 6BZ6 6BZ6 6AW8A 6BZ6 6AL5 12AX7 6AQ5 6AQ5 6CS6 12AU7A 6CM6 12AU7A 6DQ6A 6AX4GT 1B3GT 6BA6 or 6BZ6 6BE6 6BA6 or 6BZ6 21CBP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 583 Ch= 158R - Setchell Carlson, Inc.; St.
- Shape
- Tablemodel, with any shape - general.
- Notes
-

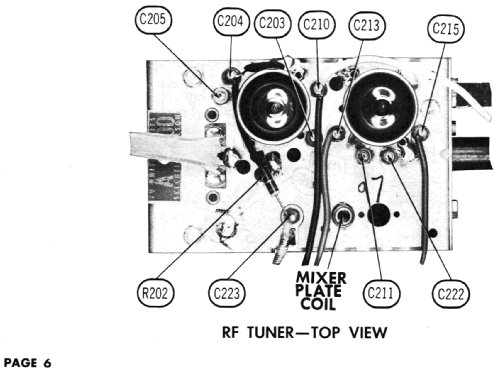

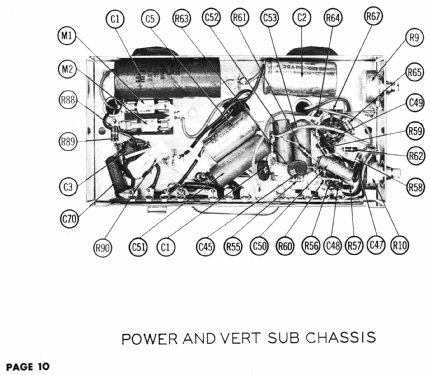

Setchell-Carlson model 583 is a 21" b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 158R, AM radio, VHF tuner 57B48 and picture tube 21CBP4A.
- Literature/Schematics (1)

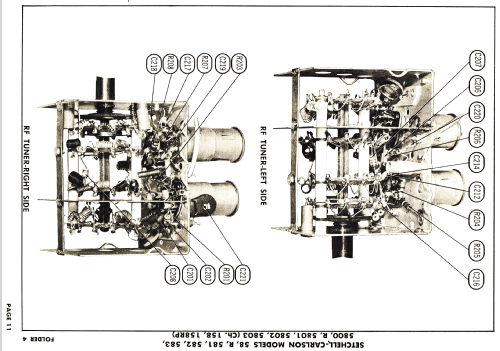

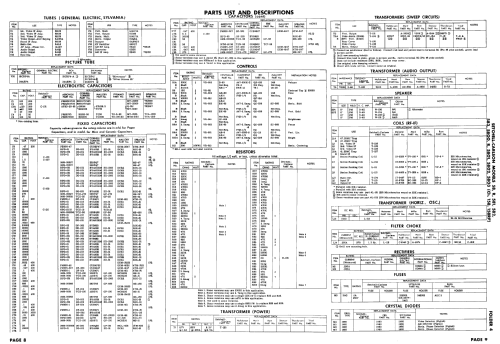

- Photofact Folder, Howard W. SAMS (Set 396 Folder 4 dated 4-58)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
