• Country
• United States of America (USA)

• Manufacturer / Brand
• Setchell Carlson, Inc.; St.Paul (MN)

• Year
• 1956 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 137548

• • Brand: Doraphone

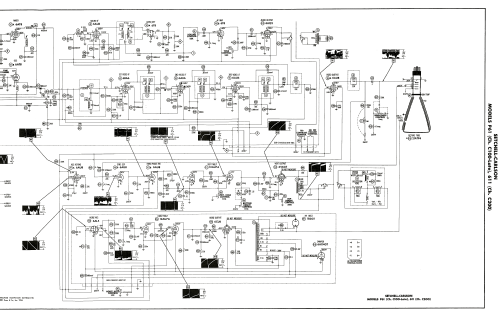

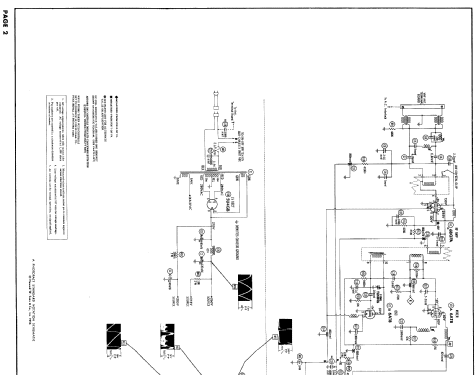

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• 6BQ7A or 6BC8 6AT8 or 6BR8 6BA6 6AU6 6AU6 6AU8 or 6AW8 6AU8 or 6AW8 6AU6 6T8 6AQ5 12AU7A 6V6GT 6AL5 12AU7A 6CU6 or 6BQ6GA 6AX4GT 1B3GT 5U4GB or 5U4GA 21ATP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 611 Ch= C200 - Setchell Carlson, Inc.; St.

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• The Setchell - Carlson model 611 is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13. Equipped with chassis C200 and picture tube 21ATP4.

• Literature/Schematics (1)

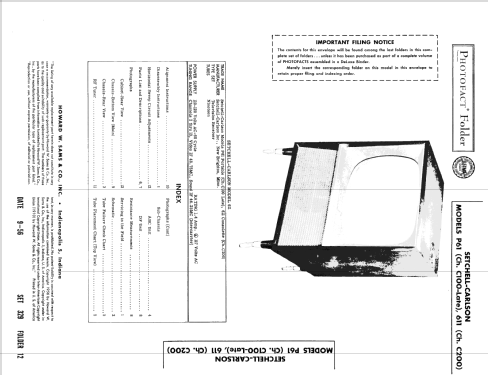

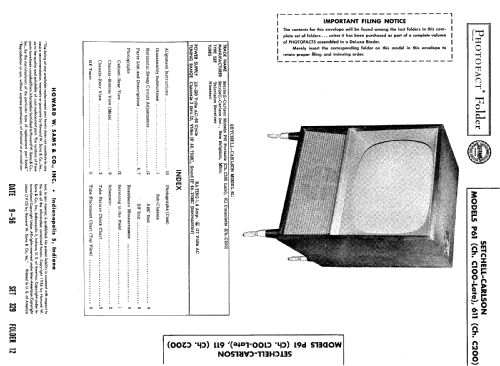

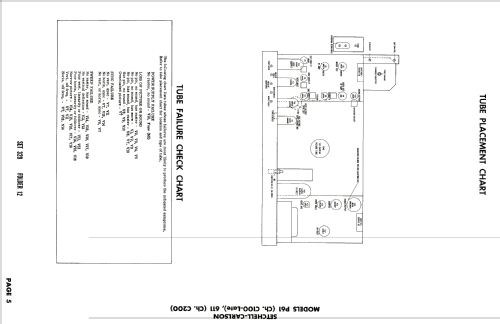

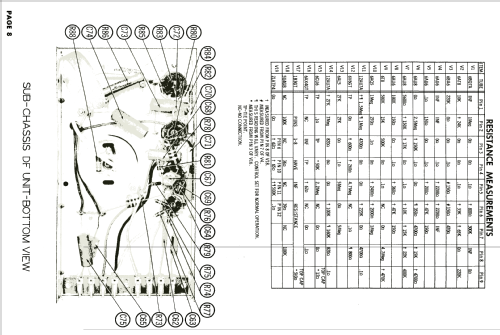

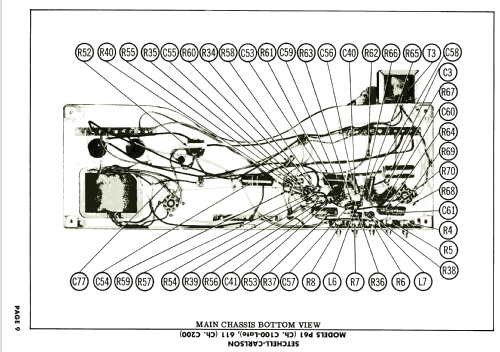

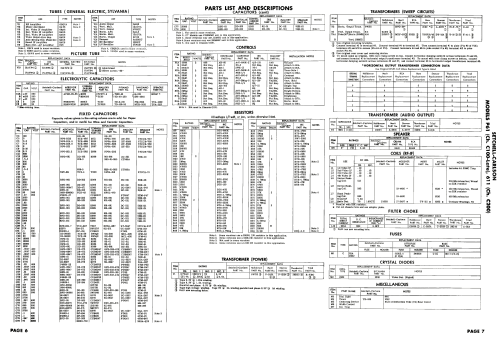

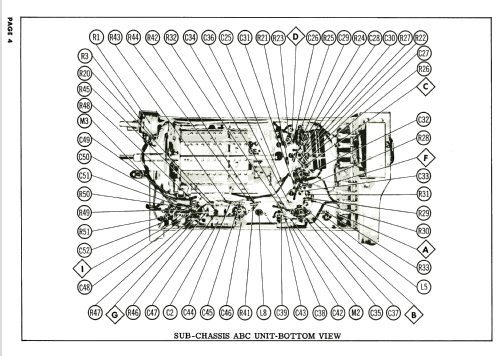

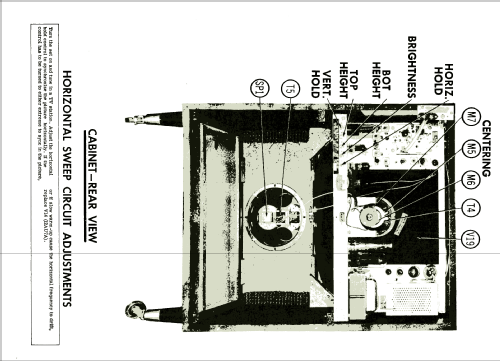

• Photofact Folder, Howard W. SAMS (Date 9-56, Set 329, Folder 12)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
