• Country
• United States of America (USA)

• Manufacturer / Brand
• Shakespeare Elektronic Products Group, Columbia

• Year
• 1991 ?

• Category
• Commercial Transmitter & Receiver (TRX not Amateur)

• Radiomuseum.org ID
• 203923

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Storage and/or dry batteries / 10,8 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

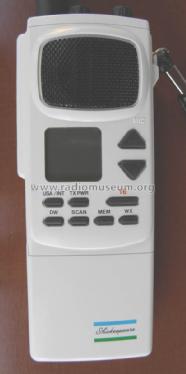

• Model: Marine VHF Radio SE500 - Shakespeare Elektronic

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 70 x 180 x 40 mm / 2.8 x 7.1 x 1.6 inch

• Notes
• Seefunkgerät, Frequenzbereich 156,050 bis 162,025 MHz, FM.
  57 USA-, 57 International- und 10 Wetter-Kanäle schaltbar.
  Zweikanalüberwachung (jeweiliger Arbeitskanal und Kanal 16).
  Sendeleistung 5 W/2,5 W/1 W, NF-Leistung 0,35 W.
  Zulassung FCC ID: 140SE500

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• - - Manufacturers Literature (Marine VHF Radio SE500 Owner`s Handbook)

• Author
• Model page created by Siegfried Droese. See "Data change" for further contributors.
