Feilo 飞乐 2P1

Shanghai No.2 上海无线电二厂 Shanghai No.2 Radio Factory; Shanghai

Data
Forum
Pictures
Collections

  • Year
  • 1963/1964
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 179508

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 3
  • Main principle
  • TRF with regeneration; ZF/IF 465 kHz; 2 AF stage(s)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

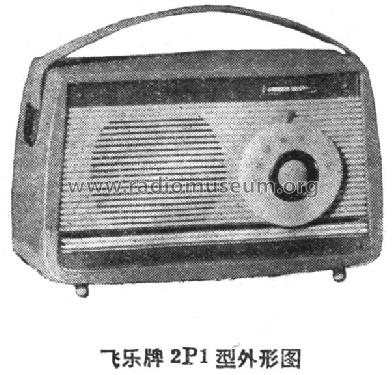

  • Model: Feilo 飞乐 2P1 - Shanghai No.2 上海无线电二厂
  • Shape
  • Tablemodel, low profile (big size).
  • Notes
  • Model Feilo 飞乐 2P1 (Philo, Feile, Happy Flying) has the following key features 主要性能: Frequency range 频率范围: broadcast band 535 - 1605 kc. Sensitivity 灵敏度: < ? mV/m. Selectivity 选择性: > ? dB S/N. Set audio output 额定功率: ? mW. The transistor 2Z301 can be exchanged with 3AG1 and the Z171B with 3AX13B and 2Z172B with 3AX14B. The diode 1Z1 is about a 2AP9. There is mentioned also a 2P1-3 and a 2P1-4 model.
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
