• Country
• People's Republic of China

• Manufacturer / Brand
• Shanghai No.2 上海无线电二厂 Shanghai No.2 Radio Factory; Shanghai

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 246951

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 2x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Power out
• 0.05 W (0.1 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Red Lantern 6-Transistor 748 - Shanghai No.2 上海无线电二厂

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 66 x 102 x 32 mm / 2.6 x 4 x 1.3 inch

• Notes

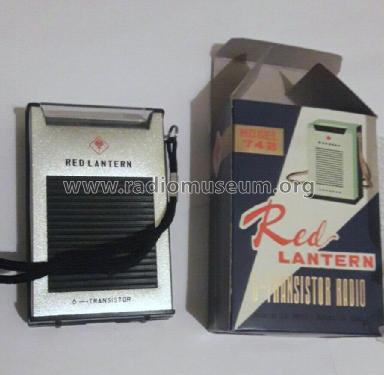

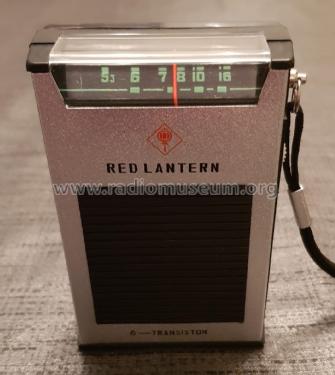

• Red Lantern Pocket AM Radio Model 6-Transistor 748.
  Wrist Strap
  Made in China.

• Net weight (2.2 lb = 1 kg)
• 0.180 kg / 0 lb 6.3 oz (0.396 lb)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
